Refuelling solutions

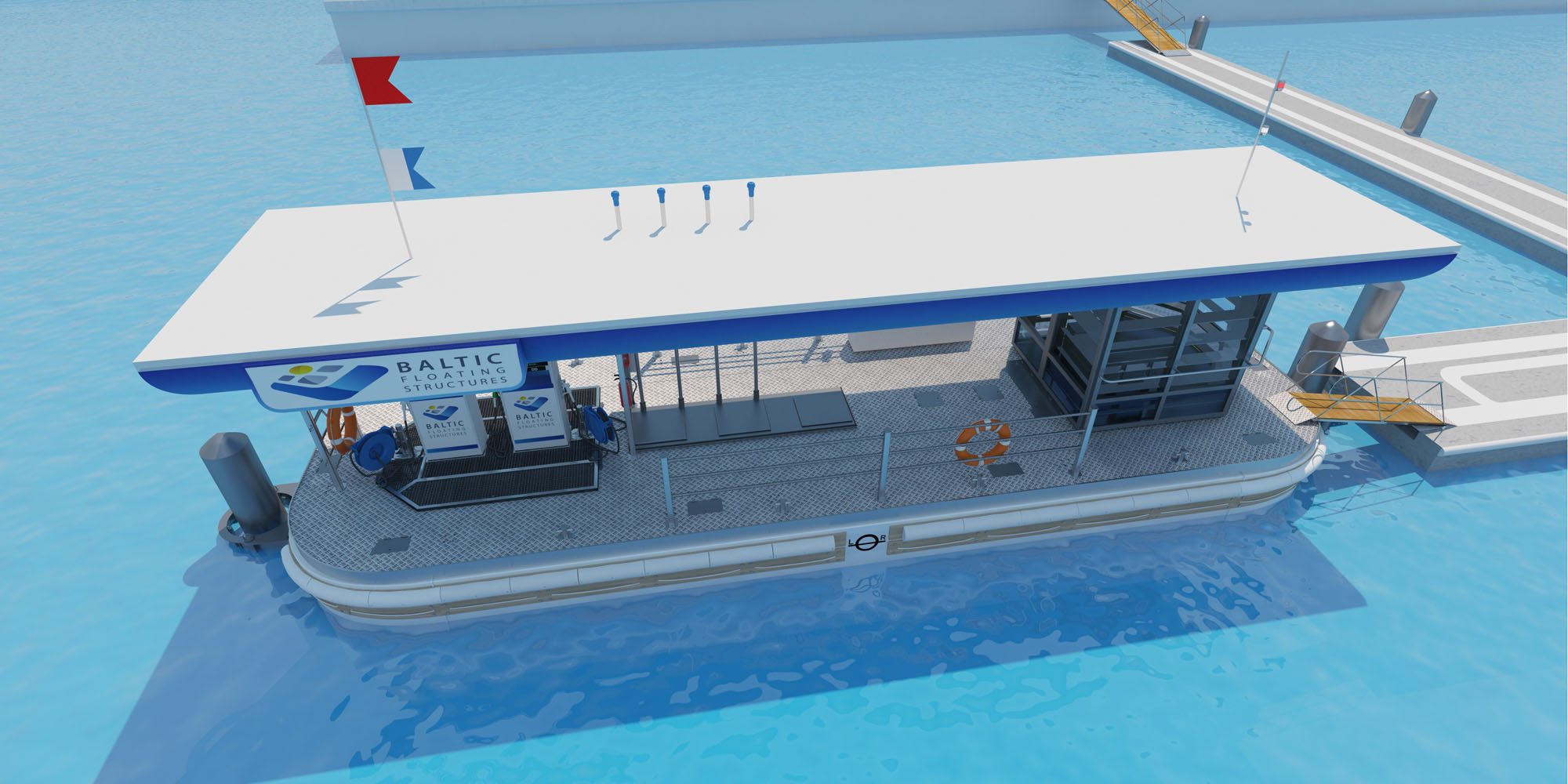

02 Series Floating Fuel Station
With a 5 year operating experience (in EU countries, Russia) BalticFS 02 series floating fuel station has proven to be one of the most thorough, ecologically safe and technologically thought through floating gas stations of the Baltic Floating Structures model range.
This is the only model which can be disassembled and placed in 5 containers for fast, convenient and cheap delivery to almost any location in the World.
The 02 Series Floating Fuel Station has a steel hull, combined with extensive use of galvanized structures and stainless steel elements, which guarantees high quality and long life durability even in the most aggressive salty waters.
Floating fuel station has the following characteristics:
- Double-walled fuel tank of 40 m3;
- The station is intended for installation in sea and fresh waters;
- Assembly of the station is conducted on an installation site within 7 days;
- Cheap and fast delivery to any location in the World in 5 containers;
- Multilevel protection of the steel hull against corrosion;
- 100% unsinkable as confirmed by Lloyd's Register, Croatian Sea Register and Russian River Register;
- The high standards of ecological and fire safety corresponding to all directives of EU;
- The station has an integrated lightning rod;
- The fuel station is installed with anchors or piles;
- The refuelling process of the floating fuel station can be carried out both with a fuel truck and with a bunkering vessel;
- Mini-market, as an additional income source;
- The station can be moved to another location if necessary;
- Low freeboard (0.66 – 0.96) makes the water transport refuelling process convenient and safe as well as minimizes environmental contamination.
| Model | 02.3 - 40 |
|
Total Area |
16 m х 5 m |
|
Freeboard |
2,4 m |
|
Docking Weight |
45 t |
|
Hull Structure |
Steel structure, 5 step protection from corrosion, stainless steel elements, galvanized |
|
Draft (min and max) |
1,56 m - 1,86 m |
|
Fuel Tank (double-walled) |
40 m³ |
|
Types of Fuel |
1-3 |
|
Mini-Market |
2,4 m х 3,1 m |
|
Ship Class |
AT I.W.W. Pontoon. With descriptive note: Bunker station suitable for storage of gas oil/diesel oil (UN 1202) and Benzine (UN 1203) in under deck tanks. (Lloyd's Register) |
|
Installation Location |
In wave protected areas, as well as ports and marinas |
|
Fuel Dispensing Units |
2 |
| * technical parameters can be changed according to clients individual requirements | |
